电焊台

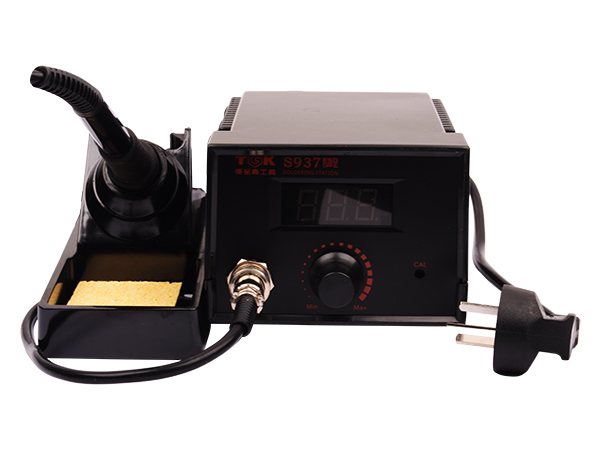

category	project	TGK-S937
Function parameter	Rated input voltage	AC 220V 50Hz
	rated power	60 W
	The output voltage	24V
	Maximum instantaneous power	Less than 150W
	Standby power consumption	XX
	Adjustable temperature range	200-480 ° C
	Temperature correction	Yes
	Digital display / temperature adjustment	Digital display
	Power saving function	no
	Low temperature alarm function	no
	Temperature lock mode	mechanical
	Tip to ground resistance	<2 ohms
	Tip to ground potential	<2mV
Characteristic parameter	Heating time Normal temperature -350°	<60S
	Temperature deviation	±5° C (after temperature correction)
	Temperature stability	±10°C (no load)
	Warm back time	<3S
	Heating core life	>5000H (constant temperature 350 °C)
Component characteristics	transformer	6636 copper
	Heater	Ceramic A1321
	Handle line	Silicone, Teflon
	shell	metal
	Iron frame	High quality bakelite
	Iron mouth	TGK-900M series
	Circuit configuration	MCU temperature control
Performance overview	窗体顶端窗体顶端窗体顶端 The price is moderate and the performance is stable; the 60W power and ceramic heating core can ensure the soldering station has strong temperature recovery and continuous welding capability; the practical potentiometer temperature mode. It is a cost-effective digital LED digital display soldering station. 窗体底端窗体底端窗体底端

1. Slim design, especially space saving

2. The handle is particularly light and will not feel tired for a long time.

3.6636 pure copper transformer, high power, high efficiency, low heat loss and low loss

4. Long-life stainless steel heating core, anti-fall, high heat transfer efficiency

5. Split-type welding nozzle design, reducing the cost of replacing consumables
