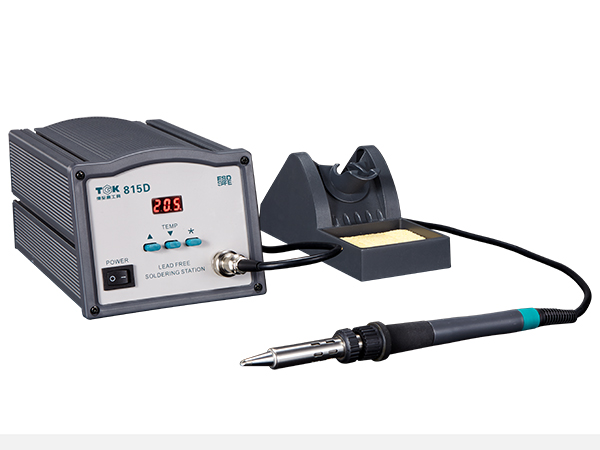

| category | project | TGK-809D | TGK-815D |
| Function parameter | Rated input voltage | AC 220V 50Hz | AC 220V 50Hz |
| rated power | 90 W | 150 W | |
| The output voltage | High frequency communication 36V | High frequency communication 36V | |
| Maximum instantaneous power | Less than 100W | Less than 160W | |
| Standby power consumption | Less than 6W | Less than6W | |
| Adjustable temperature range | 200-420 ° C (multi-mode optional) | 200-420 ° C (multi-mode optional) | |
| Temperature correction | Digital school temperature | Digital school temperature | |
| Digital display / temperature adjustment | LED digital display | LED digital display | |
| Power saving function | YES | YES | |
| Low temperature alarm function | YES | YES | |
| Temperature lock mode | smart Lock | smart Lock | |
| Tip to ground resistance | <2 ohms | <2 ohms | |
| Tip to ground potential | <2mV | <2mV | |
| Characteristic parameter | Heating time Normal temperature -350° | <30S | <40S |
| Temperature deviation | ±1 ° C (after temperature correction) | ±1 ° C (after temperature correction) | |
| Temperature stability | ±2°C (no load) | ±2°C (no load) | |
| Warm back time | <2S | <2S | |
| Heating core life | >5000H (constant temperature 350 °C) | >5000H (constant temperature 350 °C) | |
| Component characteristics | transformer | 7638 copper | 8560 copper |
| 发热芯 | High frequency heating core | High frequency heating core | |
| 手柄线 | Silicone, Teflon | Silicone, Teflon | |
| 外壳 | Aluminum alloy | Aluminum alloy | |
| 烙铁架 | Aluminum casting | Aluminum casting | |
| 烙铁嘴 | TGK-200M series | TGK-500M series | |
| 电路结构 | MCU temperature control | MCU temperature control | |
| Performance overview | Eddy current heating, PID temperature control, rapid temperature rise and rapid temperature recovery, true lead-free soldering; LED digital display, digital calibration, multi-operation mode optional, fault alarm | ||
1. High-frequency eddy current heating, fast heating and warming speed, achieving lead-free soldering
2. Microcomputer control, push-button temperature adjustment, digital temperature calibration, and automatic sleep and automatic shutdown function
3. Cryptographic temperature lock function to effectively guarantee the production process
4. Anti-static design, a variety of tips to choose from
