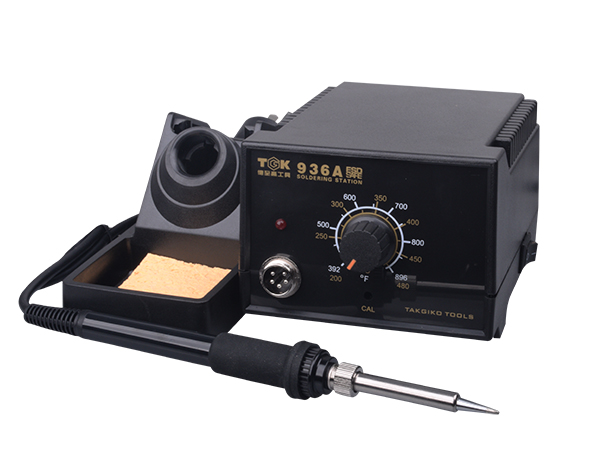

Welding station

Function parameter

Rated input voltage

AC 220V 50Hz

AC 220V 50Hz

rated power

60 W

60 W

The output voltage

24V

24V

Maximum instantaneous power

Less than 150W

Less than 60W

Standby power consumption

Less than 1.5W at constant temperature

Adjustable temperature range

200-480 ° C

200-450 ° C

Temperature correction

Yes

Yes

Digital display / temperature adjustment

digital display

digital display

Power saving function

No

No

Low temperature alarm function

No

No

Temperature lock mode

No

mechanical

Tip to ground resistance

<2 ohms

<2 ohms

Tip to ground potential

<2mV

<2mV

Characteristic parameter

Heating time
Normal temperature -350°

<60S

<60S

Temperature deviation

±5° C (after temperature correction)

±5° C (after temperature correction)

Temperature stability

±15°C (no load)

±15°C (no load)

Warm back time

<3S

<3S

Heating core life

>5000H (constant temperature 350 °C)

>1000H (constant temperature 350 °C)

Component characteristics

transformer

6636 copper

6628  copper

Heater

Ceramic A1321

Ordinary 4-core stainless steel heater

Handle line

PVC

PVC

shell

Recycled materials

Recycled materials

Iron frame

High quality bakelite

High quality bakelite

Iron mouth

TGK-900M series

TGK-900M series

Circuit configuration

Analog temperature control

Original imported temperature control IC

Performance overview

窗体顶端

Low price and stable performance; 60W power and ceramic heating core (stainless steel heating core) can ensure the soldering station has strong temperature recovery and continuous welding capability; practical potentiometer temperature mode. It is a soldering station with high cost performance.
