Product Image
Specifications
Features
Instructions for use

锡焊返修装备

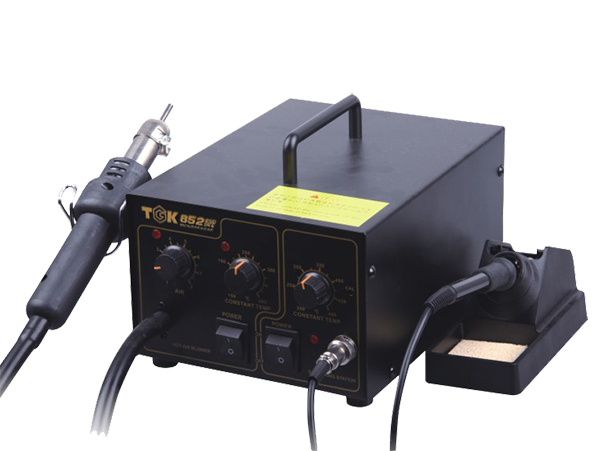

category	project	TGK-852
switchboard	Rated input voltage	AC 220V 50Hz
	rated power	650W
	Digital display / temperature adjustment	temperature adjustment
	The output voltage	AC 220V 50Hz
Hot air part	Adjustable temperature range	100-480℃
	Temperature stability	±20℃( no load)
	Temperature correction	/
	Shut down cold air	Yes
	Sleep standby	no
	Airflow mode	Diaphragm type air pump
	air flow volume	23L/min(max)
	Adjustment method	8-level stepless speed regulation
Soldering station part	Operating Voltage	AC 24V 50Hz
	temperature range	200-480℃
	Tip to ground resistance	<2 ohms
	Tip to ground potential	<2mV
	Heating time Normal temperature -350°	<60S
	Temperature deviation	±5 ° C (after temperature correction)
	Temperature stability	±10°C (no load)
	Warm back time	<3S
	Heating core life	>5000H (constant temperature 350 °C)
	transformer	6636 copper clad aluminum
	Heater	Ceramic A1321
	Handle line	Silicone, Teflon
	Iron frame	High quality bakelite
	Iron mouth	TGK-900M-
	Circuit configuration	MCU temperature control
Performance overview	The air flow of the blower is large, the wind is soft, but the wind pressure is small, the wind nozzle can not be small, otherwise the temperature is not high, and it is not allowed. Suitable for large-area heating, precise temperature control, such as: BGA, MOS, plastic parts.

1. The combination of hot air desoldering station and constant temperature soldering station can save space.

2. Anti-static design to prevent damage to PCB board due to static electricity and leakage

3. Non-contact solder joint soldering method can eliminate part displacement and thermal shock

4. The handle can be replaced with different nozzles, suitable for desoldering of different SMD components, the handle is small in size, easy to hold, and can also be placed on the universal workbench.

5. Hot air desoldering handle and soldering station handle are made of high temperature resistant antistatic silicone material

6.650W high power fast constant temperature, with the use

7. The soldering station handle adopts ceramic heating core, which has fast heating and long service life.
