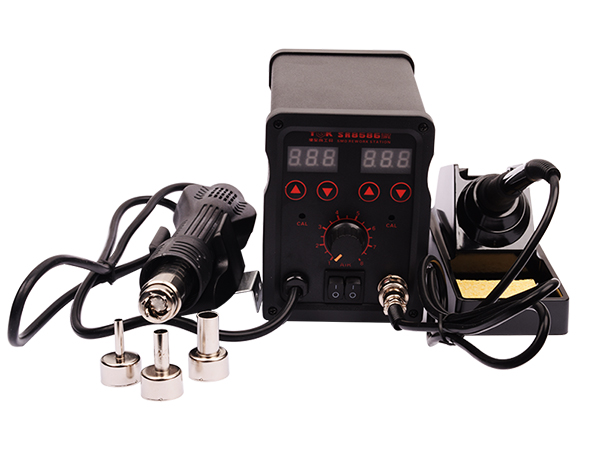

Product Image
Specifications
Features
Instructions for use

锡焊返修装备

category	project	TGK-8586
switchboard	Rated input voltage	AC 220V 50Hz
	rated power	750W
	Digital display / temperature adjustment	Digital display
	The output voltage	AC 220V 50Hz
Hot air part	Adjustable temperature range	100-480℃
	Temperature stability	±10℃( no load)
	Temperature correction	Yes
	Shut down cold air	Yes
	Sleep standby	Yes
	Airflow mode	Turbo DC fan
	air flow volume	120L/min(max)
	Adjustment method	8-level stepless speed regulation
Soldering station part	Operating Voltage	AC 24V 50Hz
	temperature range	200-480℃
	Tip to ground resistance	<2 ohms
	Tip to ground potential	<2mV
	Heating time Normal temperature -350°	<60S
	Temperature deviation	±5 ° C (after temperature correction)
	Temperature stability	±15°C (no load)
	Warm back time	<3S
	Heating core life	>5000H (constant temperature 350 °C)
	transformer	6636 copper clad aluminum
	Heater	Ceramic A1321
	Handle line	Silicone, Teflon
	Iron frame	High quality bakelite
	Iron mouth	TGK-900M-
	Circuit configuration	MCU temperature control
Performance overview	The air flow of the blower is large, the wind is soft, but the wind pressure is small, the wind nozzle can not be small, otherwise the temperature is not high, and it is not allowed. Suitable for large-area heating, precise temperature control, such as: BGA, MOS, plastic parts.

1. Sensor closed loop, microcomputer numerical control temperature control, large starting power, rapid temperature rise, accurate temperature temperature, not affected by air volume

2. Anti-static design to prevent damage to PCB board due to static electricity and leakage

3. Welding method without contact with solder joints, eliminating part displacement and thermal shock

4. Can greatly adjust the air volume and temperature, can solder QFP and SOP type IC, welding and tin removal can choose different nozzles according to requirements

5. Imported heating core, nozzle is the same as international brand

6. After the welding is completed, the air supply delays after the shutdown, prolonging the life of the heating element and the handle

7. Sleep function can be selected

8. The temperature setting and the current setting are two ways to choose
