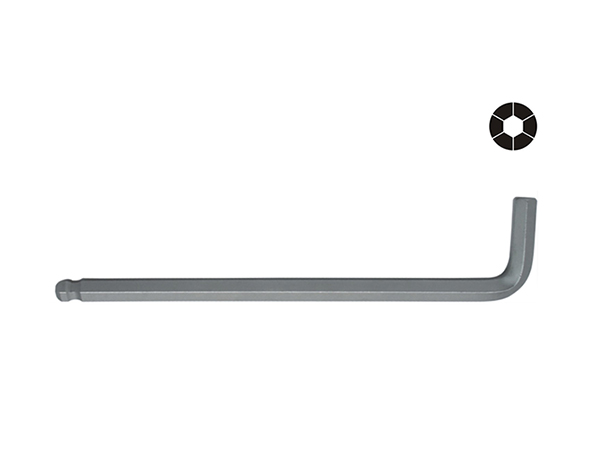

| model | specification(mm) | Short side length (mm) | Long side length (mm) | Branch/package (PCS) | box(PCS) | weight（kg） |
| BG-015Q | 1.5 | 13.5 | 77 | 12 | 432 | 1.4 |
| BG-020Q | 2.0 | 15.5 | 82 | 12 | 432 | 1.8 |
| BG-025Q | 2.5 | 17.5 | 88.5 | 12 | 432 | 3.2 |
| BG-030Q | 3.0 | 19 | 98.5 | 12 | 432 | 4.5 |
| BG-040Q | 4.0 | 24 | 104 | 12 | 432 | 5.0 |
| BG-045Q | 4.5 | 22 | 111 | 6 | 144 | 3.0 |
| BG-050Q | 5.0 | 27 | 116 | 6 | 144 | 4.3 |
| BG-055Q | 5.5 | 26 | 124 | 6 | 144 | 5.4 |
| BG-060Q | 6.0 | 31 | 138 | 6 | 144 | 6.7 |
| BG-080Q | 8.0 | 35 | 157.5 | 6 | 144 | 15.6 |
| BG-0100Q | 10.0 | 39 | 167 | 3 | 48 | 14.5 |
Features:
1. Material: CR-V alloy steel
2. Hardness: 50-57HRC
3. The surface of the matte is nickel-plated, the appearance is beautiful, and the rust is longer.
1. Forging with S2 special alloy steel and CR-V alloy steel
2. Damp fire treatment, good torque
3. Chamfering at the end to make it easier to insert the nut
4. Complete categories, suitable for different job needs
5. Comply with German DIN industry standard and German GS certification
6. Pass SGS lead-free environmental testing
