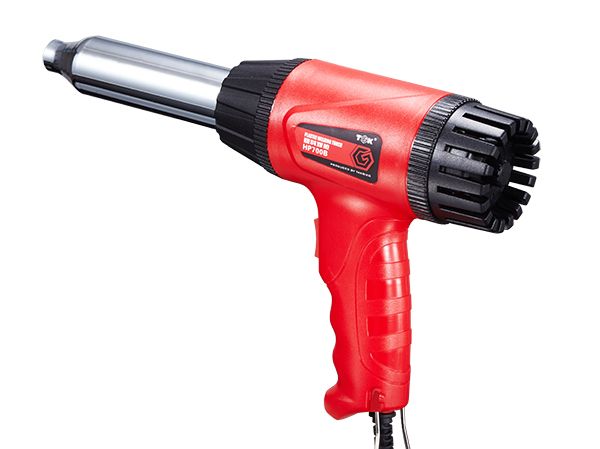

Plastic welding torch

Plastic welding torch is suitable for injection molding whitening treatment, plastic hardware return processing, plastic welding repair processing, integrated circuit welding, repair processing and wide application in electronic industry.

1. Check that the power socket should be a single-phase AC 220v power supply before use, and maintain a good grounding.
2. Insert the torch plug into the power socket. Mars or white smoke may appear when you use it for the first time. This is a positive phenomenon and disappears after 5 minutes.
3. Turn the torch to ‘O’ and turn it to ‘I’. The file is heated at a low temperature, and then pulled to the ‘II’ file for high temperature heating.
4. The temperature of the welding torch can be adjusted from low temperature 100 °C to high temperature 500 °C. When the plastic sheet is heated to 130 °C-140 °C, it is soft. It can be formed with a little pressure. With the electronic stepless thermostat, it has been obtained. The required welding temperature, the welding temperature is generally around 240 ° C, the welding should pay attention to the distance between the nozzle and the welding point
5. When the operation is finished, the switch will be turned to the I position and then the temperature regulator will be turned off. After the heat of the welding torch is discharged, the power is turned off, which can extend the service life of the welding torch.
6. Please use the original plastic welding gun core

Common faults and troubleshooting methods
